630mm Rigid Stranding Machine use for CU and AL wire
1.USAGE
The machine is mainly used for stranding and compacting of copper or aluminum sector or round conductor, as well as pre-spiral sector conductor etc.
The whole machine is driven by separate motors, and each cage or capstan is driven by separate motor to drive the cage rotating by large modulus timing belt. Compared with the ground shaft transmission, the separate motor transmission leaves out the speed change gearbox and ground shaft transmission system, and solves the oil leakage and the noise problem fundamentally. It makes the maintenance more convenient. The ground shaft and transmission gear have been cancelled, so the transmission energy consumption reduces. The energy consumption of separate motor transmission is less than that in the ground shaft transmission in machine normal running.
2. Technical specification:
3.1 Dia of single Al Wire : Φ1.8mm-Φ5.0mm
Cu Wire :Φ1.5mm-Φ5.0mm
3.2 Max. Strand OUter Dia Φ45mm
3.3 Max. Rotatspeed Full loading
12 B 170rpm
18 B 150rpm
24 B 132rpm
3.4 Stranding pitch (can be set , touch screen)
12 B 45～602mm (non-stage)
18 B 49～685mm (non-stage)
24 B 56～877mm (non-stage)
3.5 Motor power of each cage
12 B 90KW (AC Motor variable frequency)
18 B 90KW (AC Motor variable frequency )
24 B 90KW (AC Motor variable frequency )
3.6 Meter counter (mechanical part, electrical part )
3.6.1 Circumference length of meter counter πD=500mm
3.6.2 Meter counting precision error ±0.3%
3.6.3 Max. Counting length 9999.9m
3.7 Φ2000 Strong dual haul-off capstan (with pneumatic wire pressing device)
3.7.1 Capstan diameter Φ2000 (groove:5,6)
3.7.2 Max. Haul-off linear speed 40m/min
3.7.3 Max. Haul-off force 12t
3.7.4 Motor power 90KW(AC variable frequency motor)
3.8 Φ3150 Column type take-up with traversing stand
3.8.1 Loading weight 12t
3.8.2 Take-up bobbin PN1600～PN3150mm
3.8.3 Max. Traverse diameter Φ60mm
3.8.4 Max. T/U speed 50m/min
3.9 Line central height 1000mm
3.Main parts
2.1 12 ,18,24 stranding cage each 1 set
2.2 Pre-twist and compacting device 3 sets
2.3 Side bottom loading device 3 sets
2.4 Φ2000 Strong double haul-off capstan 1 set
2.5 Meter counter (mechanical and electrical ) 1 set
2.6 Φ3150 Column type take-up with traver stand 1 set
2.7 Electrical control system 1 set
2.8 Safety protection system 1 set
4.Relevant Photo

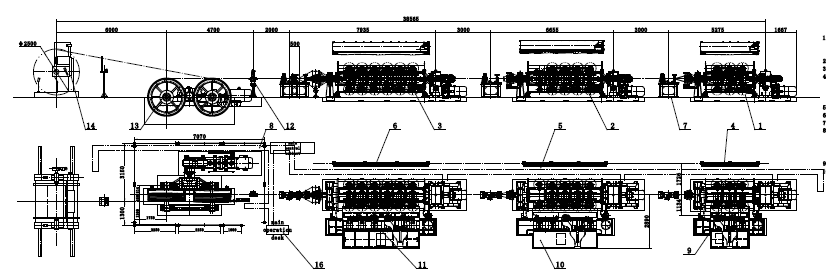

5.Drawing
|
|
