Cable Making Machine Single Wire 1.7~4.5mm Stranding Machine High Speed Concentric Type Stranding Machine
1. Application
This machine is used for stranding and compacting of copper, aluminum and aluminum alloy conductors of round and sector shapes. It’s also used for stranding ACSR.
2. Main Components
2.1 Central coiled pay-off stand 1 set
2.2 Coiled rewinding pay-off stand 10 sets
2.3 6B, 12B, 18B, 24B twister each 1 set
2.4 Assembly die holder 1 set
2.5 Meter counter 1 set
2.6 Φ2000 dual haul-off capstan 1 set
2.7 Φ3200 portal type take-up stand 1 set
2.8 Electrical control system 1 set
3. Main Technical Date
3.1 Single conductor dia. Cu Φ1.7～Φ4.5mm
Al Φ1.7～Φ4.5mm
3.2 Max. finished OD Φ55mm
3.3 Stranding pitch 40～350mm(Infinitely variable)
3.4 Max. rotating speed 500r/min
3.5 Max. linear speed 120m/min
3.6 Rewinding linear speed 150～200m/min(Depends on single wire quality)
3.7 Dia. of haul-off capstan Φ2000mm
3.8 Max. pull force 12T
3.9 Central coiled pay-off stand 630mm
3.10 Accumulating bobbin size in twister Φ1100×Φ500×200mm(OD X ID X W)
3.11 Coiled rewinding pay-off stand Φ600×Φ1060×H1730mm(ID X OD X H)
3.12 Take-up Drum 1600～3200mm
3.13 Rotating motor for twister
6B 45kw (AC VF motor)
12B 55kw (AC VF motor)
18B 75kw (AC VF motor)
24B 90kw (AC VF motor)
3.14 Accumulating bobbin motor
6B 37kw (AC VF motor)
12B 45kw (AC VF motor)
18B 55kw (AC VF motor)
24B 75kw (AC VF motor)
3.15 Traversing motor for twister
6B 1.1kw (AC VF motor)
12B 1.1kw (AC VF motor)
18B 1.5kw (AC VF motor)
24B 2.2kw (AC VF motor)
3.16 Capstan motor 110kw (AC VF motor)
3.17 Central height 1000mm

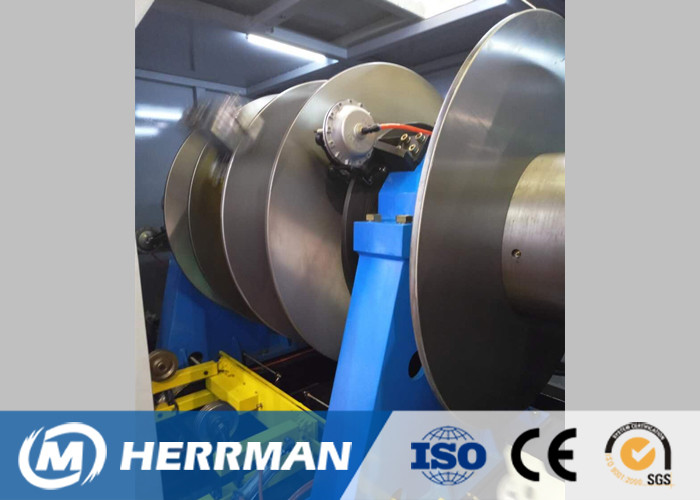

4. Photo
